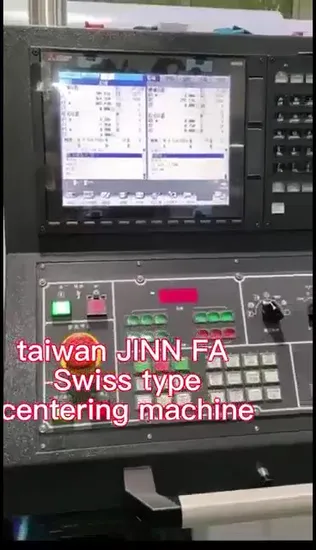

CNC Swiss Type 2 Spindle Automatic Lathe Machine for Multi-Batch Machining (JSL-26ABY)

Basic Info

Model NO.	JSL-26ABY
Numerical Control	CNC
Processing Precision	0.005-0.01(mm)
Performance Classification	High-End CNC Machine Tools
Certification	CE, ISO 9001
Condition	New
CNC Control System	Fanuc Mitsubishi
Machining Capacity	Light Duty
Number of Tools	39
Max. Turned Length(mm)	260
Max. Length of Workpiece(mm)	260
Width of Guide Rail(mm)	25
Number of Spindles	2 Spindle
Max. Spindle Speed(r.p.m)	8000
Spindle Bore(mm)	36
Spindle Motor Power(Kw)	2.2/5.5
Number of Axis	8
Positioning Accuracy(mm)	±0.08
Dimension(L*W*H)(mm)	3108× 2046 × 2100
Weight (Kg)	4790
Voltage	220V/50Hz
Transport Package	Standard Marine Wooden Pallet Packaging
Specification	Customized Available
Trademark	JINN FA
Origin	Taiwan China
Production Capacity	200 Set/Sets Per Year

Product Description

Product Parameters

Content			Parameter	Remark
Basic specifications	The maximum processing diameter of the positive spindle		26mm
	sub-spindle maximum machining diameter		26mm
	Positive spindle maximum bore diameter		13mm
	sub-spindle maximum bore diameter		10mm
	Positive spindle maximum tapping		M10
	sub-spindle maximum tapping		M8
	Side Drill Maximum Drilling Inner Diameter		10mm
	side drill maximum tapping		M8
	Spindle Front Deep Hole Drill Inner Diameter		13mm
	Maximum machining length		rotating guide Cover: 260mm
			Cutting type Type: 100mm
	Number of tools	Outside diameter knife	9	16
		Inner hole cutter	5	ψ25
		side drill	7	ER-16
		Sub-spindle outer diameter cutter	4	16
		Sub-spindle inner hole cutter	4	ψ25
		Sub-spindle side drill	4	ER-16
		Sub-spindle end drill	4	ER-16
		Deep hole drilling	2	ψ25
	Rapid feed		30M/min
	Number of control axes		8
	Mechanical appearance (length * width * height)		3108*2046*2100
	Total weight of machinery (Kg)		4790
Spindle	Motor model and manufacturer		BiI112SS/20000i	FANUC
	transfer method		Built-in
	Motor power		2.2/5.5KW	FANUC
	range of rotation		15~8000rpm
	Maximum torque		20/49NM	FANUC
	Spindle through hole diameter/Push tube through hole diameter		ψ36 / ψ28
	Spindle collet		Tsugami 25
	Spindle front bearing model		7012
	Spindle rear bearing model		C
	Spindle front bearing diameter		ψ60
	Lubricating medium		NBU15 KLUBER
	Spindle cooling mode		air cooled
	Spindle bearing precision		P4

NOTE:For more detailed parameters, please contact us at any time.
